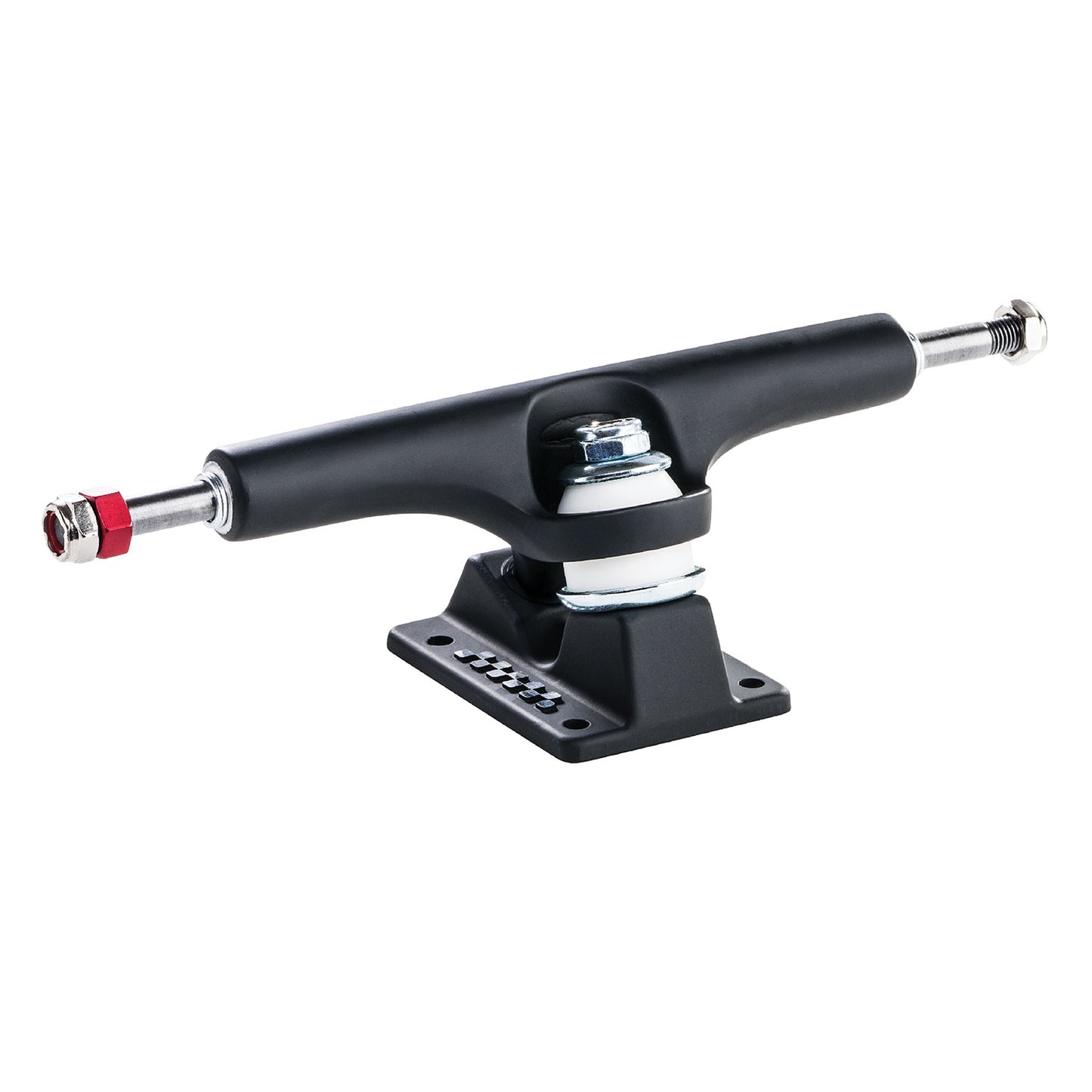

Ace AF1 Matte Black 66

SOLD AS A PAIR:

FOR VERT, POOL, BOWL, PARK

The all-new ACE AF1 features game-changing performance without deviating from our original Ace geometry. The AF1 is carefully manufactured using our proprietary casting process. Years in development, the ACE AF1 has a 70% increase in the aluminium’s structural integrity, making it the strongest cast truck on the market. We updated the sizing on the 44 thru 77 models for a better fit across multiple board widths. The Ace AF1, tomorrow’s technology today!

 Axle width: 9” (229mm)

 Hanger width: 6.4” (163mm)

 Truck height: 2.1” (53mm)

 Fits boards: 8.75” - 9.25”

 Weight: 14.5 oz.

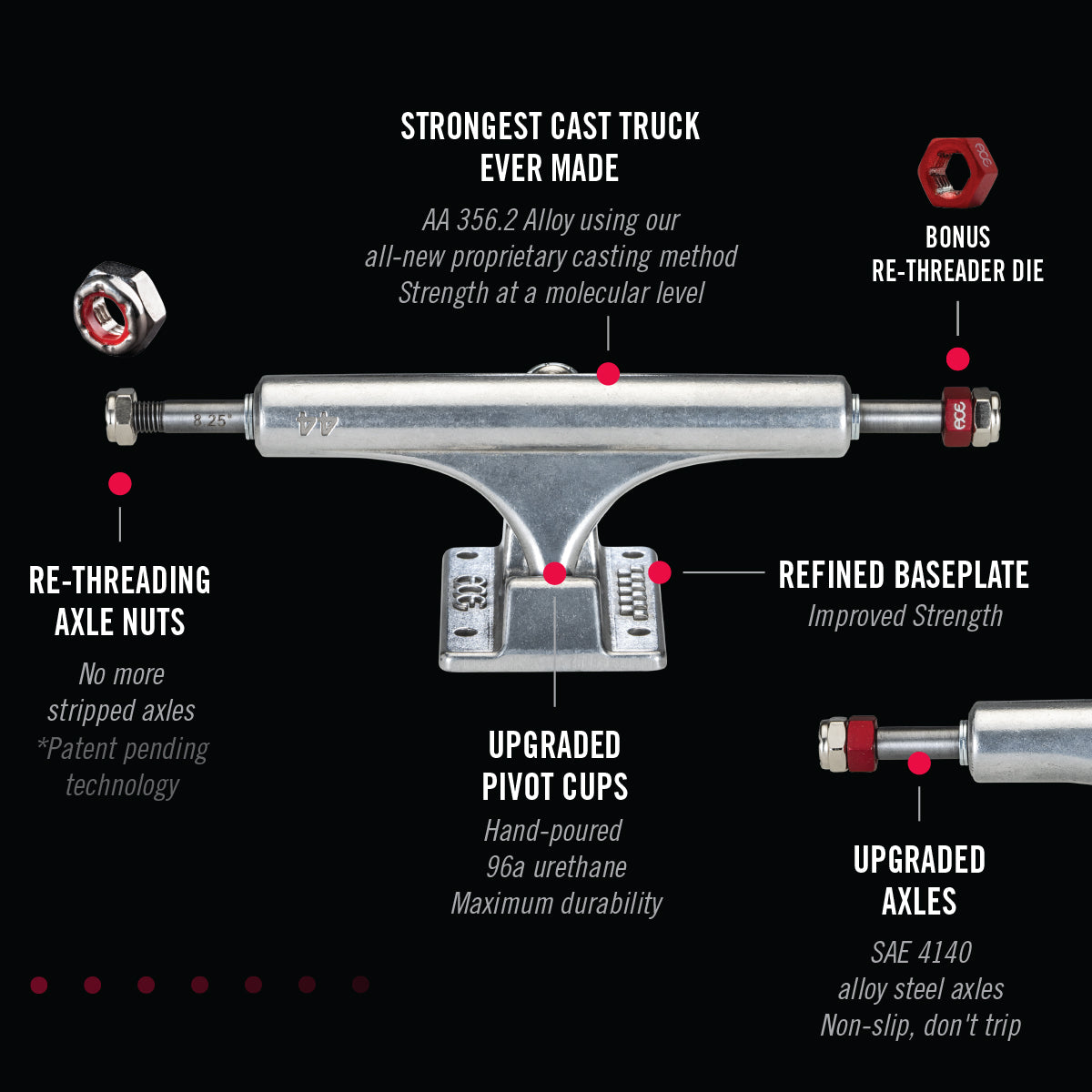

 Manufactured with high-quality AA 356.2 alloy using our own proprietary casting method.

 True T6 heat-treated baseplates and hangers.

 SAE 4140 steel alloy axles, oversized to eliminate bearing wobble.

 Patent pending rethreading axle nuts - no more damaged axle ends!

 Durable Hand-poured 96a urethane pivot bushings for smooth as silk response.

 Refined bushing and cup washer shapes for a cleaner turn.

 Machine-faced hanger ends for precise bearing contact.
